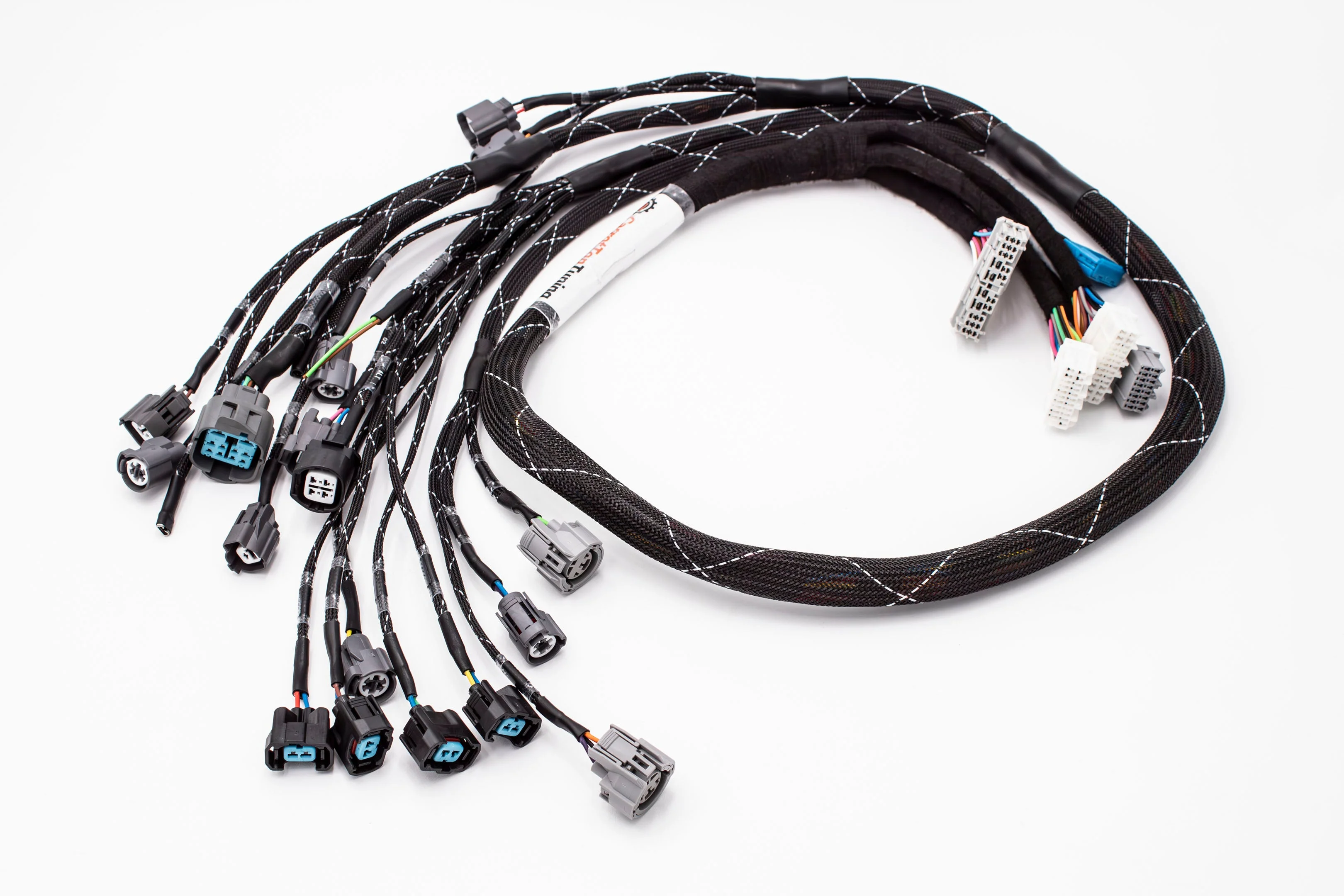

D & B-Series OBD2 Engine Tucked Engine Harness Kit w/ Subharness | 92-95 Civic EG EJ
Our engine harness is made with new high quality connectors, and automotive grade wiring. Carefully designed to run hidden in the engine bay to enhance the aestic "wire-tuck" look. The installation is less complex than our competitors, 95% plug n play.
***Note: Charge harness not included must be ran independently. Must run High Impedance injectors, is not compatible with a resistor box.
This kit includes:
1x Wire Tuck Engine Harness
1x Sub (Underdash) Harness
Injector Connector: OBD2
Alternator Connector: OBD2
Distributor: OBD2 10-PIN
Connector Label Abbreviations:
FAN - Radiator Fan Switch
VSS - Vehicle Speed Sensor (Trans)
GND - Chassis Ground
DIS -Distributor
REV - Reverse Lights
ECT -Engine Coolant Temp Sensor
VTS - VTEC Solenoid
H2O -Temp sender for Cluster (Coolant)
ST -Starter Trigger
1 - 4 -Injectors
O2 - Oxygen Sensor
ALT - Alternator
KS - Knock Sensor
OIL - Low Oil Pressure Warning
IAT - Intake Temp. Sensor
EXTRA - AUX WIRES (Can be pinned for Boost by Gear, etc.)
TPS -Throttle Position Sensor
IAC -Idle Air Control Valve
MAP - Manifold Pressure Sensor
Our engine harness is made with new high quality connectors, and automotive grade wiring. Carefully designed to run hidden in the engine bay to enhance the aestic "wire-tuck" look. The installation is less complex than our competitors, 95% plug n play.
***Note: Charge harness not included must be ran independently. Must run High Impedance injectors, is not compatible with a resistor box.
This kit includes:
1x Wire Tuck Engine Harness
1x Sub (Underdash) Harness
Injector Connector: OBD2
Alternator Connector: OBD2
Distributor: OBD2 10-PIN
Connector Label Abbreviations:
FAN - Radiator Fan Switch
VSS - Vehicle Speed Sensor (Trans)
GND - Chassis Ground
DIS -Distributor
REV - Reverse Lights
ECT -Engine Coolant Temp Sensor
VTS - VTEC Solenoid
H2O -Temp sender for Cluster (Coolant)
ST -Starter Trigger
1 - 4 -Injectors
O2 - Oxygen Sensor
ALT - Alternator
KS - Knock Sensor
OIL - Low Oil Pressure Warning
IAT - Intake Temp. Sensor
EXTRA - AUX WIRES (Can be pinned for Boost by Gear, etc.)
TPS -Throttle Position Sensor
IAC -Idle Air Control Valve
MAP - Manifold Pressure Sensor
Original: $394.95
-70%$394.95
$118.48Description
